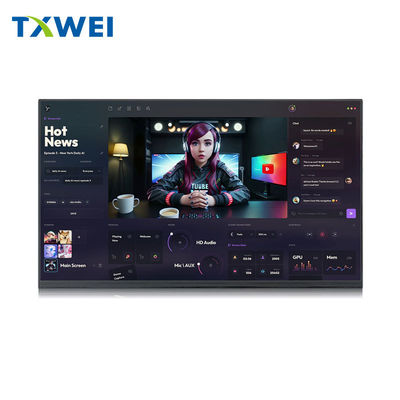

15.6-inch EDP interface can be used for capacitive touch 1920 * 1080 treadmill LCD screen computer monitor

TXW156012B0: 15.6 '' Full HD Industrial TFT LCD Module - Tianxianwei Technology's Leading Product for the Summer of 2024
When industrial displays were still 'sufficient', Tianxianwei Technology chose to take another step forward. TXW156012B0 provides a one-stop new choice for industrial control, medical, automotive, and high-end commercial displays with a 1920 × 1080 physical resolution, 16.7 M true color, 2 Lane eDP high-speed interface, and 400 cd/m ² high brightness backlight.

1, Three core highlights
True Full HD: 1920 × RGB × 1080 resolution, 0.179mm ultra precision pixels, delicate and jagged image.
Full view color free: IPS technology+ALL O'Clock viewing angle design, any angle is in the "C position".
Industrial grade reliability: stable operation at 0~+50 ℃, worry free storage at -20~+60 ℃, and excellent performance even after 96 hours of wet heat testing at 50 ℃/90% RH.

2, Hardcore specifications
Display area: 344.16 × 193.59 mm (16:9)
• Brightness/Contrast: 400 cd/m ² (Typ.), readable under real sunlight
Backlight scheme: 72 white LEDs, 30.8-36.3V wide voltage drive, lifespan ≥ 20000 hours
• Signal interface: 2 Lane eDP (HBR), DCLK 148.5 MHz optimal clock, compatible with mainstream motherboards
Electrical characteristics: 3.3 V single power supply, typical power consumption of 1.08 W, peak power consumption of 2.1 W; surge current ≤ 2 A/2 ms, easy to pass EMI
• Appearance size: 350.72 × 204.98 × 2.82 mm, ultra narrow frame, easy to embed

3, Detail filling: saving every penny of cost for the terminal machine
Standard 30 pin eDP socket, directly compatible with reference designs of Intel, AMD, RK, MTK platforms without the need for adapter boards.
The backlight driver integrates a 5-21 V wide voltage input, allowing engineers to directly reuse the motherboard's 12 V or 19 V bus, saving one DCDC.
Full Lead Free lead-free process, compliant with RoHS/REACH, worry free export.

4, Strict verification: visible quality
All 8 reliability tests passed at once:
50 cycles of high and low temperature impact
96 hours of high temperature and high humidity
96 hour low-temperature storage
96 hours of continuous operation at 50 ℃
No segment missing, no bubbles, no rainbow patterns - true industrial standard.

5, Delivery and Support
• In stock+lockable BOM, samples shipped within 48 hours
• Optional resistor/capacitor touch assembly, one-stop set
• Support customized FPC length, backlight brightness, and cover fitting (OGS/GG)
Five year long-term supply commitment, R&D team responds 24 hours locally in Shenzhen
TXW156012B0 is not just a 15.6-inch display screen, it is a rethinking of "industrial aesthetics" by Tianxianwei Technology: making the display both accurate and reliable, and simple enough. Now, let it become the most uncompromising screen in your next complete machine
