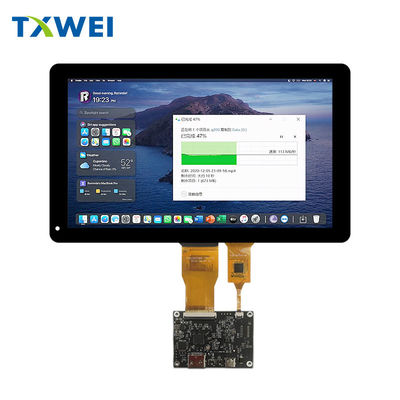

10.1-inch LCD screen with USB IIC dual interface capacitive touch screen and HDMI driver board display module

10.1-inch LCD touch screen with HDMI driver board: a "high brightness full view" large screen designed for agricultural machinery, trucks, and industrial scenes

Product Sketch

TXW100076B0-XL packs a 10.1-inch IPS screen, 700 nits high brightness backlight, G+G tempered touch, and plug and play HDMI driver board into a lightweight 252 × 150 × 6.5 mm body. Whether it's a tractor exposed to the sun at noon, a truck bouncing below zero, or a medical instrument thermostat, it can be seen at a glance and reached at a touch

Core selling points

☛ 700 nits really high brightness - direct sunlight without pulling curtains, agricultural machinery operation reads as usual.
☛ IPS full view angle of 178 ° - there is no color difference on the same screen for the driver's side, passenger side, and rear seats.
☛ G+G tempered touch panel -1.1mm surface glass, Mohs 6H scratch resistant; The GT9271 chip supports 5-point touch with water.
☛ -Working temperature range of 20~+70 ℃ - Northeast grain warehouses, southern Xinjiang deserts, and plateau tunnels are online all year round.
☛ HDMI Plug and Play -1080p adaptive, Raspberry Pi Jetson, The car's Android box 0 driver lights up.
☛ RGB 24 bit native port -50 pin FPC reserved for STM32, NXP, and Renesas MCU geeks, capable of smooth 60Hz refresh even on bare metal devices.

Actual testing scenario

☛ +45 ℃ tractor roof: continuous exposure to sunlight for 4 hours, shell temperature of 68 ℃, no yellowing, no bubbles.
☛ -20 ℃ cold start: The cold storage of the carriage is left to stand for 12 hours and lights up after 3 seconds, with no drift on the touch.
☛ 80000 clicks: Only nail lines remain on the surface of G+G, without scratches; GT9271 coordinate error<0.5 mm.
☛ 12V vehicle surge: Input terminal ± 100V transient, onboard TVS clamp, screen does not restart

Interface and Line Sequence - Driver Board Side:

✔ HDMI-A: 1080p/720p automatically scales to 1024 × 600 without the need for EDID rewriting.
✔ Micro USB: HID multi touch, Windows/Linux/Android drive free.
✔ 5 V-DC: 2.1mm socket, anti reverse insertion, can be directly connected to car mounted 12 → 5 V voltage regulators.
✔ Backlight independent power supply: 8.4~9.6 V/520 mA constant current, supports PWM 1%~100% dimming, night mode power consumption<0.4 W.

Application Sketching

Agricultural machinery central control -10.1-inch replaces 7-inch, with map, camera, and plowing depth data displayed on one screen; 700 nits visible at noon, dust cover does not need to be closed.

Truck navigation - IPS full view, the passenger can also see the panoramic view of reversing; G+G surface is resistant to diesel and nail scratching.

Industrial equipment HMI - directly mounted on a 35mm DIN rail box, fully online for -20 ℃ cold storage and+70 ℃ drying room.

Medical equipment - IIC touch controls with a 3-meter cable without delay, allowing for precise waveform selection even with latex gloves.
