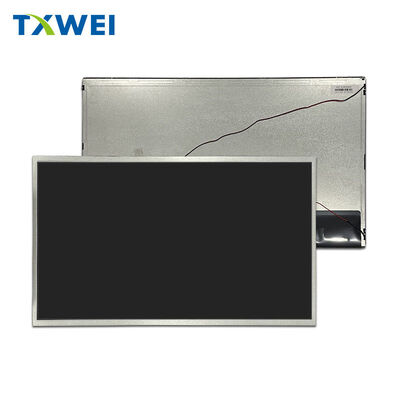

21.5 inch LCD screen, brand new IPS full view 1080P display screen for commercial display devices

προϊόντα

10 ιντσών LCD Μοντέλο

Επικοινωνήστε μαζί μας

Επικοινωνήστε τώρα

21.5 inch LCD screen, brand new IPS full view 1080P display screen for commercial display devices

Τροποποιημένο:	1
τιμή:	Διαπραγματεύσιμα
Περίοδος παράδοσης:	7-16 ημέρες
Μέθοδος πληρωμής:	L/C,D/A,D/P,T/T
Ικανότητα εφοδιασμού:	10000 ΤΕΜ

Πληροφορίες λεπτομέρειας

Περιγραφή του προϊόντος

Πληροφορίες λεπτομέρειας

Τόπος καταγωγής

ΣΕΝΤΖΕΝ

Μάρκα

TXWEI

Πιστοποίηση

CE FCC ROHS

Αριθμό μοντέλου

TXW215009B0

Έγγραφο

Αριθμός εικονοστοιχείων:

1920*1080

Κατεύθυνση προβολής:

Διεπαφή εμφάνισης:

Λάμψη:

1000 nits

Ενεργή περιοχή:

476.64*268.11 (mm)

Μέγεθος περιγράμματος:

495.6*292.4*10.5 (mm)

Θερμοκρασία λειτουργίας:

-20+70 ℃

Θερμοκρασία αποθήκευσης:

-30+80°C

Αριθμός ακίδων:

30 PIN

Επισημαίνω:

21.5 inch IPS LCD screen

1080P commercial display screen

brand new TFT LCD display

Περιγραφή του προϊόντος

TXW215009B0

21.5" Ultra-Bright Industrial Display

1000 nits | 1920×1080 Full HD | IPS | LVDS | -20°C~+70°C

▸▸▸

The TXW215009B0 is a 21.5-inch high-brightness industrial display engineered for environments where visibility isn't optional — it's essential. With 1000 nits of calibrated luminance, this display cuts through direct sunlight, high ambient glare, and challenging lighting conditions that render standard screens unusable. Whether it's a fuel station canopy in midday summer, a train platform in freezing winter, or a factory floor flooded with overhead lighting, your content stays crisp, readable, and impactful.

▸▸▸

What Sets It Apart

◆ 1000 nits of pure visibility

Most industrial displays top out at 500-700 nits. The TXW215009B0 doubles down with 1000 nits of calibrated brightness, delivering genuine sunlight readability for outdoor installations and high-ambient-light environments. No squinting. No shading. No compromises.

◆ IPS precision from every angle

178 degrees of consistent color, contrast, and gamma. Stand directly in front, view from the side, or look up from below — the image remains uniform and accurate. Critical for public information displays, medical imaging, and collaborative industrial interfaces where multiple viewers need simultaneous clarity.

◆ Industrial-grade thermal resilience

-20°C to +70°C operational range. -30°C to +80°C storage tolerance. This display doesn't just survive temperature extremes — it performs through them. Engineered for uncontrolled environments where consumer-grade panels fail within months.

◆ Full HD in a commanding format

1920 × 1080 resolution across 476.64 × 268.11mm of active display area. Sharp text for data-dense interfaces. Detailed graphics for complex visualizations. Smooth video for dynamic content. The 16:9 widescreen format matches modern content standards and human visual expectations.

◆ LVDS stability for industrial systems

30-pin LVDS differential signaling. Low electromagnetic interference. Proven compatibility with extended cable runs. This isn't experimental technology — it's the industrial standard that integration engineers trust for mission-critical deployments.

▸▸▸

Where It Performs

◆ Fuel & Energy

Gas pump toppers. EV charging station interfaces. Payment confirmation screens. Outdoor payment environments demand displays that work in direct sun, resist temperature swings from dawn chill to midday heat, and maintain reliability through thousands of daily interactions. The TXW215009B0 is built for this reality.

◆ Transit & Infrastructure

Turnstile displays. Platform information boards. Next-train announcements. Emergency notification systems. These applications operate 24/7 in tunnels, open platforms, and semi-outdoor environments with no climate control. Wide-temperature stability and high brightness aren't features here — they're requirements.

◆ Industrial Automation

Machine HMI panels. Process control visualization. SCADA system displays. Factory floors generate heat, vibration, and electromagnetic noise. Standard commercial displays degrade rapidly. The TXW215009B0 maintains optical performance and electrical stability where it matters most — keeping production lines running.

◆ Medical & Clinical

Diagnostic imaging monitors. Surgical displays. Patient information terminals. Medical environments demand color accuracy, consistent brightness, and absolute reliability. The IPS panel's color fidelity and the display's thermal stability meet clinical expectations for visualization accuracy.

◆ Outdoor Digital Signage

Industrial advertising displays. Public information kiosks. Wayfinding systems. When your message needs to reach audiences in uncontrolled outdoor environments, screen visibility becomes marketing effectiveness. 1000 nits ensures your content competes with sunlight and wins.

▸▸▸

Technical Foundation

Model: TXW215009B0 Size: 21.5" diagonal Resolution: 1920 × 1080 Full HD Aspect Ratio: 16:9 Panel Technology: IPS full-viewing-angle Brightness: 1000 nits typical Active Area: 476.64 × 268.11 mm Outline Dimensions: 495.6 × 292.4 × 10.5 mm Interface: LVDS 30-pin Operating Temperature: -20°C to +70°C Storage Temperature: -30°C to +80°C

The 10.5mm module thickness provides mechanical stability for industrial mounting while maintaining reasonable depth for enclosure design. Standard LVDS pinout ensures broad controller compatibility without custom interface development.

▸▸▸

Engineering Confidence

Every TXW215009B0 undergoes comprehensive validation before shipment. Thermal cycling from -30°C to +80°C confirms material stability and electrical continuity. Vibration testing simulates transport and operational mechanical stress. Optical uniformity measurement ensures consistent brightness across the entire display surface. Electrical burn-in identifies early-life failures before they reach your production line.

This isn't quality control as an afterthought. It's reliability engineering as a core design principle.
