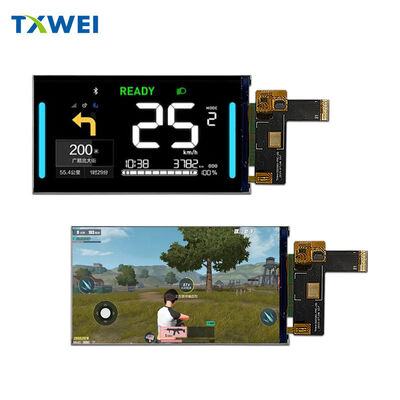

4.1inch LCD display screen 720*1280 IPS LCD module MIPI interface TFT LCD screen

Τροποποιημένο:	1
τιμή:	Διαπραγματεύσιμα
Περίοδος παράδοσης:	7-16 ημέρες
Μέθοδος πληρωμής:	L/C,D/A,D/P,T/T
Ικανότητα εφοδιασμού:	10000 ΤΕΜ

Πληροφορίες λεπτομέρειας

Περιγραφή του προϊόντος

Πληροφορίες λεπτομέρειας

Τόπος καταγωγής

ΣΕΝΤΖΕΝ

Μάρκα

TXWEI

Πιστοποίηση

CE FCC ROHS

Αριθμό μοντέλου

TXW410005B0

Έγγραφο

Αριθμός εικονοστοιχείων:

720*1280

Κατεύθυνση προβολής:

Διεπαφή εμφάνισης:

Λάμψη:

800 ψείρες

Ενεργή περιοχή:

50,59 * 90,41

Μέγεθος περιγράμματος:

51,19*91,01*1,7 χλστ

Θερμοκρασία λειτουργίας:

-20+70 ℃

Θερμοκρασία αποθήκευσης:

-30+80°C

Αριθμός ακίδων:

31pin

Επισημαίνω:

4.1 inch IPS LCD display

MIPI interface TFT screen

720x1280 resolution LCD module

Περιγραφή του προϊόντος

TXW410005B0

4.1" IPS Touch Display

720 × 1280 Portrait HD | 800 nits | MIPI | Industrial Grade

◆ ◆ ◆

The Vertical Display for Mobile Professionals

Your users move. Their environment changes. Their tools can't afford to fail.

The TXW410005B0 is a portrait-format industrial display built for handheld devices that face real-world punishment. Warehouse floors. Patrol vehicles. Open roads. Wherever the job goes, this screen follows — readable, responsive, reliable.

▸ ▸ ▸

Why This Display

◈ Sunlight Without Compromise

800 nits of brightness. Not marginal outdoor visibility. Real cut-through-the-glare clarity. Field workers read inventory lists under skylights. Drivers check routes in midday sun. Officers access data under flashing emergency lights. The screen stays legible when it matters most.

~ ~ ~

◈ Portrait Built for Hands

720 × 1280 resolution in a vertical 4.1-inch frame. Lists scroll naturally in one hand. Maps orient with forward motion up. Forms fit the narrow footprint. No wasted space. No awkward rotation. Designed for devices that live in pockets and mounts, not on desks.

~ ~ ~

◈ Touch That Works With Gloves

G+FF construction. Glass surface. Film-film sensor layers. Responsive through work gloves, light rain, screen protectors. The ST1633I controller communicates reliably over I²C. Your users touch. It responds. Every time.

~ ~ ~

◈ Temperature Extremes Covered

Cold startup at -20°C after a night in the patrol car. Continuous operation at +70°C on a sun-baked dashboard. Storage down to -30°C for arctic logistics. This display doesn't know the meaning of "operating window exceeded."

◆ ◆ ◆

Two Ways to Integrate

▸ Display Only

The optical core. 51.19 millimeters wide. 91.01 millimeters tall. 1.7 millimeters thin. MIPI DSI interface on 31 pins. ST7703I driver handling the pixel timing. Bring your own touch solution or run touchless. Total integration flexibility.

~ ~ ~

▸ With Integrated Touch

Complete module. 60.4 by 111.8 millimeters. 3.25 millimeters including the stack. Same brilliant display. Same 800 nits. Plus factory-integrated G+FF touch with I²C connection to your host. Faster time to market. Proven compatibility. Less engineering risk.

◈ Same display heart. Same industrial credentials. Choose your path based on timeline and integration strategy.

▸ ▸ ▸

The Numbers

◈ Resolution: 720 × 1280 pixels. Portrait orientation. Approximately 355 pixels per inch.

◈ Display Technology: IPS full-viewing-angle panel. 178-degree visibility without color shift.

◈ Brightness: 800 nits typical. Readable in direct sunlight.

◈ Display Interface: MIPI DSI. 31-pin connector. Modern, low-EMI, high-speed.

◈ Driver IC: ST7703I. Mature, well-documented, widely supported.

~ ~ ~

◈ Touch Structure (integrated option): G+FF. Glass plus film-film sensor.

◈ Touch Interface: I²C bus. Standard protocol. Simple firmware.

◈ Touch Controller: ST1633I. Stable, responsive, glove-capable.

~ ~ ~

◈ Active Display Area: 50.59 millimeters width. 90.41 millimeters height.

◈ Outline (display only): 51.19 by 91.01 by 1.7 millimeters.

◈ Outline (with touch): 60.4 by 111.8 by 3.25 millimeters.

~ ~ ~

◈ Operating Temperature: -20°C to +70°C.

◈ Storage Temperature: -30°C to +80°C.

◆ ◆ ◆

Where It Belongs

▸ Handheld PDA and Mobile Data Terminals

Warehouse aisles. Retail stockrooms. Field service vans. The portrait grip feels natural. The 800-nits backlight fights fluorescent and skylight competition. G+FF touch responds through work gloves without stripping for every scan. Temperature range handles the loading dock in January and the trailer roof in July.

~ ~ ~

▸ Two-Wheeler Navigation Systems

Delivery scooters. Patrol motorcycles. Fleet bikes. The vertical format slots into handlebar mounts and dashboard cutouts designed for phone-like proportions. Wide temperature certification survives engine bay heat and overnight winter parking. Sunlight readability means riders glance, not stare — and keep eyes on traffic.

~ ~ ~

▸ Law Enforcement and Tactical Equipment

Body-worn control units. Vehicle-mounted terminals. Rapid-response kits. Cold-start reliability after hours in a parked cruiser. Touch response with tactical gloves. Bright enough to read under strobing emergency lights. Built for situations where equipment failure isn't an option.

▸ ▸ ▸

Engineering Support

◈ Sample Phase

Sample quantities available for mechanical fit verification, electrical integration testing, and field validation. Typical lead time: 3–5 business days.

~ ~ ~

◈ Volume Pricing

Pilot quantities 1K–3K for design validation and initial production. 5K–10K for market launch and regional rollout. 10K+ for global deployment and aggressive cost optimization.

~ ~ ~

◈ Technical Documentation

MIPI initialization sequences. Mechanical drawings in 2D and 3D STEP formats. Touch controller firmware integration guidelines. Optical measurement reports covering brightness uniformity, color gamut, viewing angle performance. Reliability data from thermal cycling, mechanical shock, electrostatic discharge, humidity exposure testing.

~ ~ ~

◈ Customization Services

Brightness enhancement up to 1000 nits for extreme environments. Cover lens bonding with anti-glare, anti-fingerprint, or vandal-resistant surface treatments. Flexible printed circuit modifications for length, routing, connector orientation. Touch sensor pattern adjustments for specialized glove materials or stylus requirements.

◆ ◆ ◆
From Concept to FieldWeeks 1–2: Sample evaluation. Mechanical integration. Electrical bench testing.
Weeks 3–4: Firmware development. Touch tuning. Environmental validation.
Weeks 5–8: Pilot production build. Regulatory certification preparation. User trials.
Week 9+: Volume manufacturing ramp. Quality system maturation. Global field deployment.
▸ ▸ ▸
Start Your Integration◈ Request samples for immediate evaluation.
◈ Review technical documentation for engineering assessment.
◈ Schedule an applications engineering consultation for project-specific guidance.
