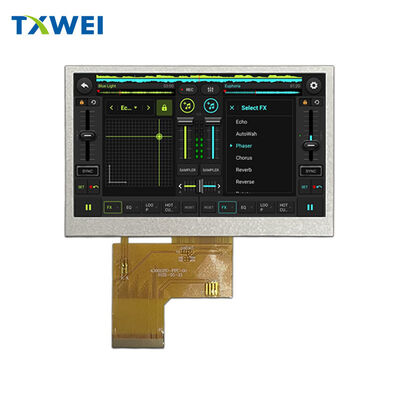

4.3 inch LCD screen 480*272 music effect display RGB interface medical display LCD module

προϊόντα

Εικονική οθόνη TFT

Ενότητα TFT LCD

Οθόνη TFT LCD

Στρογγυλό TFT LCD

Τετράγωνη οθόνη TFT

Τύπος ράβδου TFT

Δελτίο οδήγησης HDMI

Δελτίο οδηγού VGA

Χωρητική επιτροπή αφής

LCD 3 ΙΝΤΣΩΝ

4 ιντσών LCD

ενότητα 7 ίντσας LCD

10 ιντσών LCD Μοντέλο

Επικοινωνήστε μαζί μας

Επικοινωνήστε τώρα

4.3 inch LCD screen 480*272 music effect display RGB interface medical display LCD module

Τροποποιημένο:	1
τιμή:	Διαπραγματεύσιμα
Περίοδος παράδοσης:	7-16 ημέρες
Μέθοδος πληρωμής:	L/C,D/A,D/P,T/T
Ικανότητα εφοδιασμού:	10000 ΤΕΜ

Πληροφορίες λεπτομέρειας

Περιγραφή του προϊόντος

Πληροφορίες λεπτομέρειας

Τόπος καταγωγής

ΣΕΝΤΖΕΝ

Μάρκα

TXWEI

Πιστοποίηση

CE FCC ROHS

Αριθμό μοντέλου

TXW430051S0

Έγγραφο

Αριθμός εικονοστοιχείων:

480*272

Κατεύθυνση προβολής:

Διεπαφή εμφάνισης:

RGB 24 ΜΠΙΤ

Λάμψη:

450 νιτ

Ενεργή περιοχή:

95.04 ((H) * 53.856 ((V)

Μέγεθος περιγράμματος:

105.5*67.2*2.9mm

Θερμοκρασία λειτουργίας:

-20+70 ℃

Θερμοκρασία αποθήκευσης:

-30+80°C

Αριθμός ακίδων:

40PIN

Επικεφαλής IC οδηγού LCM:

ST7282A

Επισημαίνω:

4.3 inch medical LCD display

RGB interface TFT LCD module

480x272 resolution LCD screen

Περιγραφή του προϊόντος

TXW430051S0

4.3" Resistive Touch Display

480×272 | 450 nits | IPS | -20°C~+70°C | RGB 24-bit

▎Short

◆ Resistive touch. Glove-friendly. Stylus-ready.

The TXW430051S0 brings reliable touch interaction to environments where capacitive fails. Wet fingers. Thick gloves. Stylus precision. Industrial temperature range. Built for music gear, medical devices, and vehicle dashboards that demand certainty.

~

▎▎Medium

◈ Touch That Works With Anything

Resistive technology. Pressure-activated. Not capacitive magic.

◦ Wet fingers? Responsive. ◦ Work gloves? No problem. ◦ Stylus tip? Precise control. ◦ No calibration drift. No ghost touches. Just predictable input.

◈ IPS Clarity, All Angles

480 × 272 resolution. 95.04 × 53.856 mm active area.

◦ 178° viewing freedom. ◦ Portrait. Landscape. Tilted. ◦ Colors hold. Contrast stays. ◦ Musicians on stage. Drivers in motion. Medical staff at angles.

◈ Industrial Temperature Range

-20°C to +70°C operation. -30°C to +80°C storage.

◦ Cold garages. Hot vehicles. Uncontrolled spaces. ◦ Stable startup. Reliable run. No thermal drama.

◈ Cost-Effective Brilliance

450 nits. Indoor-optimized. Power-efficient.

◦ Not over-bright for dim studios. ◦ Not dim for daylight tasks. ◦ Just right for controlled and semi-outdoor environments.

~ ~

▎▎▎Long

◇ The Touch Advantage

Resistive touch technology responds to pressure, not electrical conductivity. This fundamental difference unlocks use cases that defeat capacitive screens.

Medical environments with liquid exposure. Industrial floors with gloved operators. Creative studios with stylus-driven precision. The TXW430051S0 delivers certainty where capacitive delivers frustration.

ST7282A driver IC manages the TFT active matrix. Mature platform. Stable supply. RGB 24-bit interface on 40 pins. Direct, clean connection to your processor.

◦ 105.5 × 67.2 × 2.9 mm mechanical envelope. ◦ Compact for panel integration. ◦ Slender for modern industrial design.

◇ The Backlight Engine

12-LED array. 15V drive. 40mA current.

Efficient architecture for continuous operation. PWM dimming support. Adapt to ambient conditions. Extend service life. Reduce power consumption for battery-powered applications.

450 nits typical brightness. Optimized for indoor and shaded environments. Not the sun-fighter of our 1200-nit siblings. The right brightness for studios, vehicles, and controlled spaces where eye comfort matters as much as readability.

◇ Environmental Resilience

Operating range spans -20°C to +70°C. Ninety degrees of operational confidence.

Cold startup in unheated workshops. Continuous stability in vehicle dashboards exposed to summer heat. No thermal throttling. No contrast collapse.

Storage tolerance extends to -30°C through +80°C. Shipping across climates. Seasonal inventory. Warehouse storage without climate control. Arrives working. Stays working.

Normally black display mode. Dark backgrounds save power. Improve perceived contrast. Reduce operator eye strain during extended sessions.

◇ Manufacturing Integrity

TXW Display. Shenzhen. In-house engineering. Direct production control.

Not a broker. Not a trading layer. Engineers who answer technical questions. Production lines we monitor.

99.7% outgoing quality rate. Measured. Verified. Sustained.

◦ Incoming material inspection. ◦ In-process optical testing. ◦ Final functional verification. ◦ Traceability for every unit shipped.

Technical support that understands resistive touch integration. Mechanical design considerations. Firmware calibration. After-sales that resolves, not deflects.

◇ Where It Shines

◊ Professional Music Gear

Effect processors. Mixing consoles. Synthesizer interfaces. Stage lighting controllers.

Resistive touch responds through guitar-calloused fingers. Wet stage conditions. Quick adjustments under pressure. 450 nits suits dim venue lighting. IPS viewing accommodates performer positioning. Wide temperature handles outdoor festivals and cold storage transport.

◦ Musicians touch. Sound responds. Performance flows.

~

◊ Medical & Healthcare Devices

Portable monitors. Diagnostic equipment. Treatment interfaces. Point-of-care systems.

Resistive accuracy for precise input. Glove compatibility for sterile protocols. Liquid tolerance for cleaning and clinical environments. 4.3-inch format fits mobile carts and compact devices. Long-term availability supports medical certification cycles.

◦ Patients depend on the device. The device depends on the display.

~

◊ Vehicle & Marine Dashboards

Car audio systems. GPS navigation. Marine instrumentation. Agricultural machinery.

Resistive touch works with work-gloved hands. Wet marine conditions. Vibration environments where capacitive false-triggers. 450 nits readable in shaded cabins and open vehicles. Wide temperature spans unheated garages and sun-baked dashboards.

◦ Drivers navigate. Operators control. Interfaces respond.

~

◊ Industrial Control Panels

Factory floor HMI. Machine interfaces. Test equipment. Portable gauges.

Resistive certainty for critical inputs. Glove-friendly for safety requirements. Stylus-compatible for fine adjustments. IPS visibility from operator angles. Industrial temperature for uncontrolled environments.

◦ Production depends on control. Control depends on touch that works.
